JST-ZH Connectors and Leads

The JST-ZH connector is used on many micro size receivers, servos and speed controllers. Although some manufacturers did use incompatible pin assignment, there is now a high degree of agreement on the layout signal | negative | positive. The physical design of the connector shell prevents insertion into a socket the wrong way round so mitigating the strange choice of negative in the centre.

Leads using this connector should be used with care: wires tend to be thin and the small grip area of the crimp will result in failure of the joint if excessive force is used to remove a connector. DO NOT tug on the wires to remove a plug, use tweezers to lever the connector shell out of the socket.

Click on image for a larger version.	JST-ZH Servo Lead A 100mm lightweight servo lead with a white 3 pin JST-ZH plug to mate with the connectors on the Blue Arrow R3P4-J, Plantraco 4ch servo and Spektrum AR6300 receivers. The lead has a connector at one end and bare wires at the other end (the wires may differ from those shown in the image). £ 1.30

Click on image for a larger version.	JST-ZH Servo Socket Lead A 100mm lead with a 3 pin JST-ZH socket at one end and bare wires at the other end (the wires may differ from those shown in the image). This lead will mate with the JST Servo Lead. £ 1.95

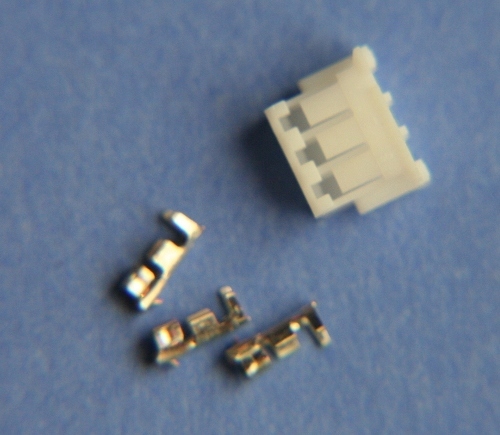

Click on image for a larger version.	JST-ZH Servo Connector Shell & Crimps (5 pack) A pack of 5 x 3 pin shell and 20 crimp terminals (5 spare) to make servo connectors compatible with all receivers that use JST-ZH 1.5mm pin spacing connectors - e.g. Spektrum AR6300 or Blue Arrow R3P4. £ 2.80

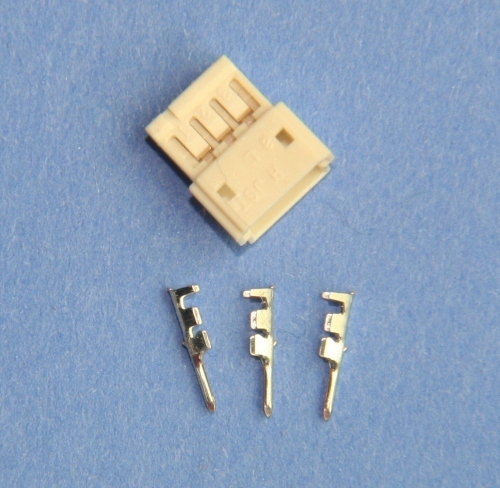

Click on image for a larger version.	JST-ZM Servo Socket Shell & Crimps (5 pack) A pack of 5 x 3 pin socket shells and 20 crimp terminals (5 spare) to make connectors which will mate with the JST-ZH 1.5mm pin space plug on servos and ESC. £ 4.15

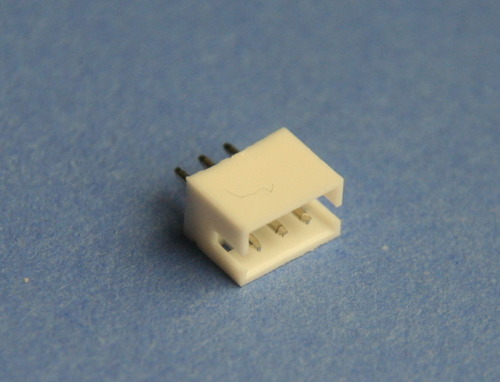

Click on image for a larger version.	JST-ZH Servo Socket with solder pins (5 pack) A 5 pack of 3 pin JST-ZH sockets which will mate with JST servo connectors. Can be used for making adapter leads - attach the wires by soldering to the socket pins. £ 3.85

Click on image for a larger version.	JST-ZH Plug / JR or Futaba Socket Adapter Lead A short adapter lead to allow servos and ESC with standard connectors to be used with a receiver with JST-ZH connectors. Available with JR/Hitec or Futaba standard size socket. Select type:
