JST-SH Connectors and Leads

Print version

Plugs/Sockets | Leads | Adapters

The JST-SH connector is used on the Spektrum AR6400 DSM2 6CH Ultra Micro-Rx and Falcon 35MHz Receiver. However, the negative and signal leads are reversed on these two receivers - if you plug a servo wired for Falcon into the Spektrum receiver, it won't work but there will be no damage!

Leads using this connector should be used with care: wires tend to be thin and the small grip area of the crimp will result in failure of the joint if excessive force is used to remove a connector. DO NOT tug on the wires to remove a plug, use tweezers to lever the connector shell out of the socket. The Falcon IDC leads are better in this respect as the connector tangs firmly grip the PTFE wire coating and you can safely pull on the wires.

Plugs/Sockets

 (Top | Leads | Adapters)

Click on image for a larger version.

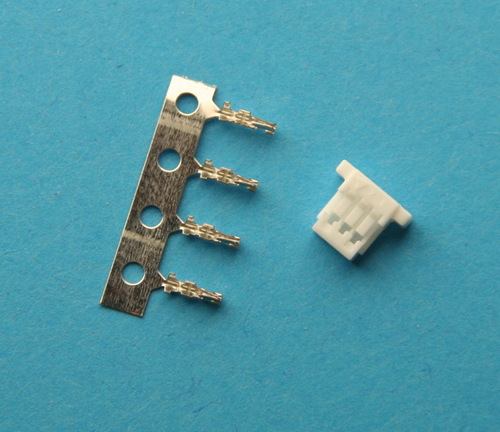

 JST-SH Servo Connector Shell & Crimps (5 pack)

5 pack of 3 pin shell and 4 crimp terminals (one spare) to make a servo connector compatible with receivers that use JST-SH 1mm pin spacing connectors - e.g. Spektrum AR6400 and Falcon Receiver.


£ 2.80

Click on image for a larger version.

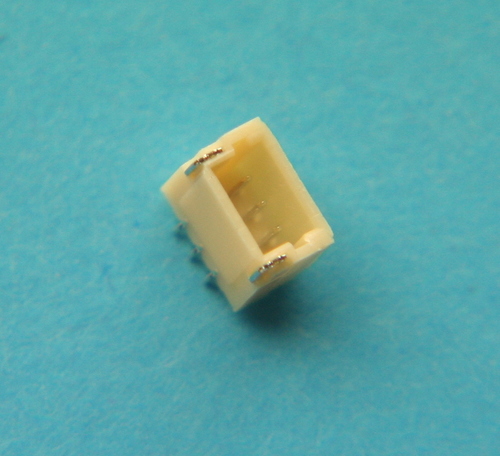

 JST-SH Servo Socket (Surface Mount) (5 pack)

5 pack of 3 pin servo sockets compatible with the 1mm pin spacing sockets on the AR6400 receiver. It can be used to add sockets for channels 4 and 5 to 'green dot' versions of the Parkzone PKZ3351) (Vapor/Ember receiver module).

Although the socket is surface mount, it is possible to attach thin wires to construct an extension lead. The soldered connections must be protected with heatshrink sleeving.


£ 3.40

Leads

 (Top | Plugs/Sockets | Adapters)

Click on image for a larger version.

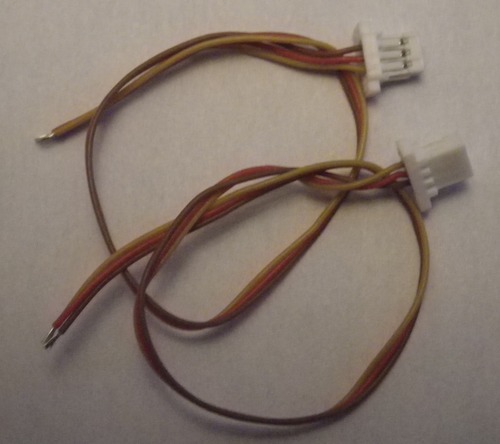

 JST-SH Servo Leads

A JST-SH servo lead compatible with the 1mm pin spacing sockets on the AR6400 receiver and Falcon 4 channel receiver. The lead is made with lightweight 32awg PTFE coated wire and has a plug at one end and bare leads at the other.

Available in 100mm and 250m lengths - the image shows the 100mm lead. Weights: 100mm - 0.4gm, 200mm - 0.6gm. Other lengths can be made to order, please contact Micron with your requirement.

This lead can be used with Falcon receivers, but the wire colours are incorrect (negative and signal leads reversed).


Select length:

Click on image for a larger version.
 JST-SH Extension Leads

A JST-SH servo extension lead compatible with the 1mm pin spacing sockets on the AR6400 receiver and Falcon 4 channel receiver. The lead is made with lightweight 32awg PTFE coated wire and has a plug one at one end and a socket at the other.

Available in 100mm and 200m lengths - the image shows the 100mm lead. Weights: 100mm - 0.5gm, 200mm - 0.7gm. Other lengths can be made to order, please contact Micron with your requirement.

This extension lead can be used with Falcon receivers, but the wire colours are incorrect (negative and signal leads reversed).


Select length:

Adapters

 (Top | Plugs/Sockets | Leads)

Click on image for a larger version.
 Falcon IDC Socket / JST-SH Plug Servo Adapter Lead

A short adapter lead to allow Falcon servos and ESC to be used with a receiver that has JST-SH sockets - e.g Spektrum AR6400 or DT Rx33


£ 1.95
