Switches and Connectors for Model Rail

Print version

Ultra-Micro Slide Switch on Mounting Plate | JST-ZH Charge Connector | Micro Slide Switch/Charge Module | JST-ZH Charge or Receiver Power Lead (150mm)


Click on image for a larger version.

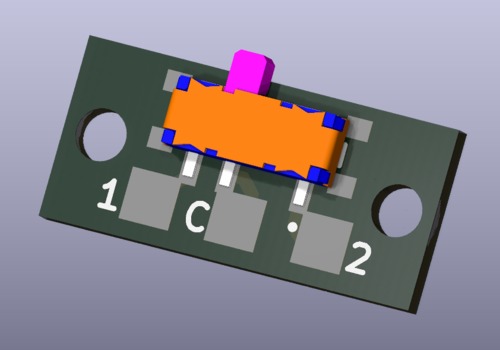

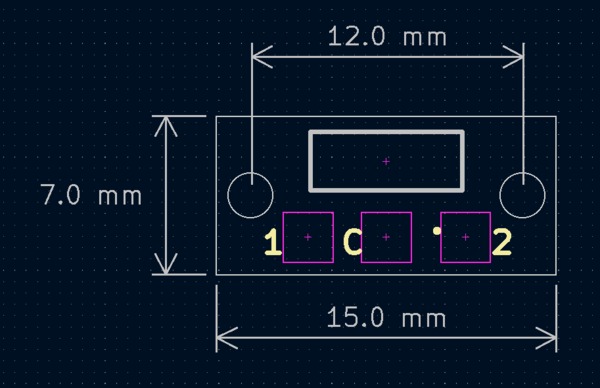

 Ultra-Micro Slide Switch on Mounting Plate
(Top | JST-ZH Charge Connector | Micro Slide Switch/Charge Module | JST-ZH Charge or Receiver Power Lead (150mm))

The micro slide switch mounted on a 15x7mm PCB with 2mm mounting holes at 12mm centre. The PCB has solder pads for attachment of lead-out wires.

Supplied with 2 x M2 nylon mounting screws & nuts.

£ 2.45

Click on image for a larger version.

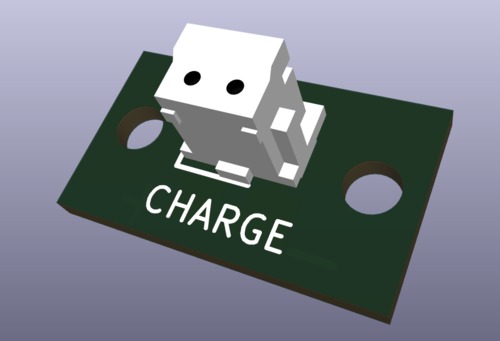

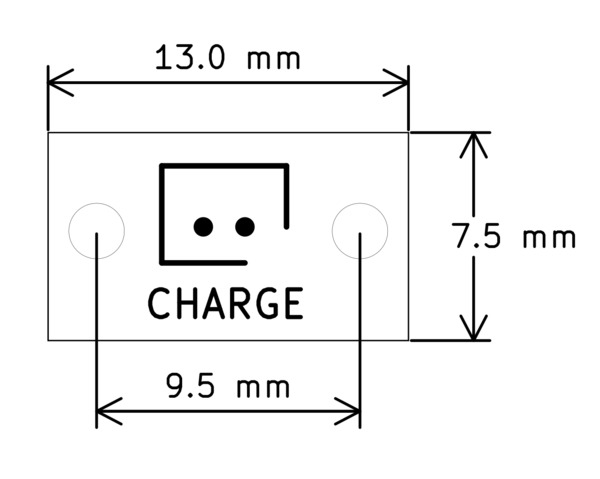

 JST-ZH Charge Connector
(Top | Ultra-Micro Slide Switch on Mounting Plate | Micro Slide Switch/Charge Module | JST-ZH Charge or Receiver Power Lead (150mm))

A 2 pin JST-ZH charge connector mounted on a 13x7.5mm GRP plate with 2mm mounting holes at 9.5mm centres.

Intended for use either with a single cell LiPo charger with JST-ZH connector option or a JST-ZH charge lead.

Supplied with 2 x M2 nylon mounting screws & nuts.

£ 1.80

Click on image for a larger version.

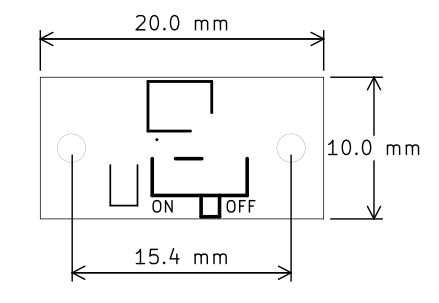

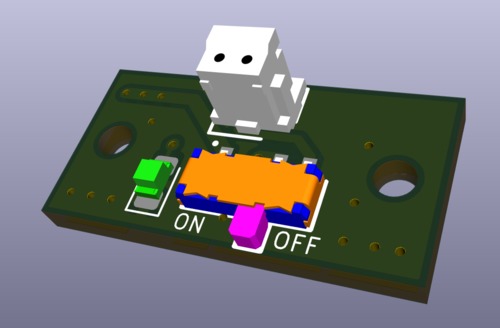

 Micro Slide Switch/Charge Module
(Top | Ultra-Micro Slide Switch on Mounting Plate | JST-ZH Charge Connector | JST-ZH Charge or Receiver Power Lead (150mm))

A tiny on/off slide switch and charge socket module for model vehicle installation using a single LiPo cell or NiMH battery. It comprises a ultra micro slide switch, JST-ZH charge connector and small LED mounted on a 20x10mm PCB. The LED may be used to repeat a receiver's on-board LED in case the receiver is completely installed with a vehicle body; this feature is called 'LED2' in receiver documentation.

Intended for use either with a single cell LiPo charger with JST-ZH connector option or a JST-ZH charge lead. The JST-ZH battery connector option is recommended so that all power connectors are compatible. Several LiPo cells are available with this connector fitted.

Supplied with 2 x M2 nylon mounting screws & nuts.

Price: from £5.15

Battery Connector:
Battery Fuse:

A PPTC resettable fuse in the battery positive lead

Base Price: £ 5.15 Total Price: £ 5.15

Click on image for a larger version.

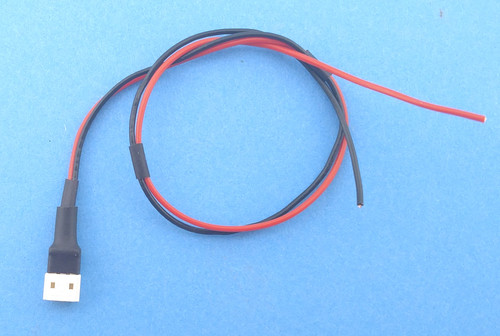

 JST-ZH Charge or Receiver Power Lead (150mm)
(Top | Ultra-Micro Slide Switch on Mounting Plate | JST-ZH Charge Connector | Micro Slide Switch/Charge Module)

A 150mm lead with a 2 pin JST-ZH connector (female shell, male contacts) at one end and bare wires at the other end. Use to charge a 1S LiPo or multi-cell NiMH battery via a Micron switch module or charge plate.

£ 1.95
