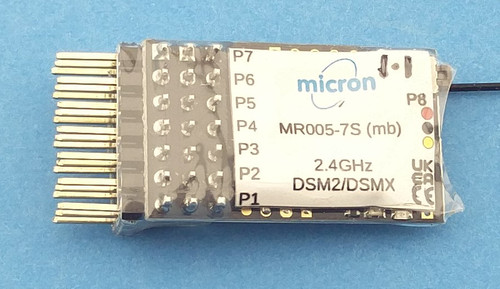

A small 7 channel DSM2/DSMX compatible receiver with JR/Futaba pins. All outputs can be configured for servo or 0V/3.3V switched. Weight: 4.5gm, dimensions: 30mm x 18mm x 11mm.

Switches on the Tx27v2 transmitter control R/C channels 1-7, each output on the receiver is controlled by one channel. 2 types of MR005 are currently available:

• MR005-7S with 7 servo outputs, and
• MR005-7X with 7 on/off (on=3.3V) outputs for signal lights or trackside lighting

Servo output on MR005-7S can be adjusted for direction and throw by using jumpers on the pins - see the user manual for details.

All MR005 outputs go to a saved position on startup so it can be switched on without having the transmitter on. All MR005 are manual bind so will not go into bind mode if the transmitter is not switched on. New output positions are saved automatically once a minute when a transmitter signal is being received.

Price £20.00

Tx27v2 is hand-held controller with seven 2-way switches for points, semaphores and lights. It is intended for use with Micron MR005 and Deltang Rx105.

Tx27v2 is special wireless controller for operating model railway turnouts. signals, lighting, etc. It has 7 x 2-way toggle switches, each controlling a separate R/C channel and turnout or signal circuit. Although it is intended for use with the Micron MR005 or Deltang Rx105, it can operate with any receiver that supports DSM2.

It is available either as a ready to use unit or as a kit of parts less the box so that it can be built into a fixed or portable track circuit mimic panel.

Instructions:

• Tx27v2 (as shown in image on left)
• Tx27 kit (Deltang original kit version)
