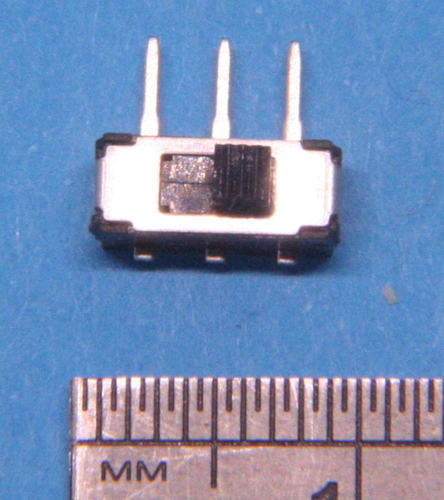

Micro Slide Switch
A micro slide switch with SPDT contacts. The body measures just 8.5 x 3.5 x 3.5mm with solder pins on a 2.5mm pitch. Contacts are rated 0.3A. There are no mounting holes so the switch body must be glued into place.
- Select type:
| Micro Slide Switch | £0.65 | Micro Slide Switch with Leads | £2.35 |
|
|
|

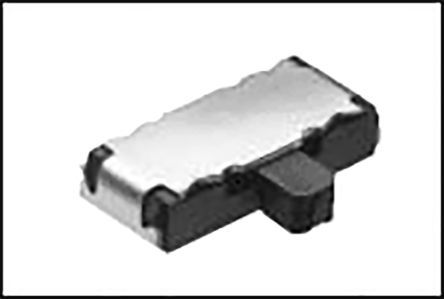

Ultra-Micro Slide Switch
- Description:
-
A really tiny slide switch with SPDT contacts. The body measures just 6.7 x 4.1 x 1.9mm. The contacts are rated at 0.3A. The switch is a surface mount type so there are no solder tags, wire must be soldered onto the SMD pads. There are no mounting holes so the switch body must be glued into place.
Also available with 100mm wires or mounted on a 15x7mm PCB with M2 mounting holes.
- Images:
-

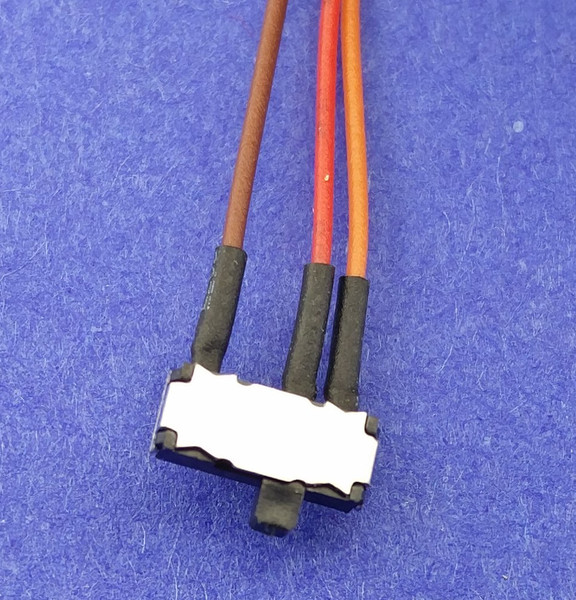

Ultra Micro Switch with Wires |

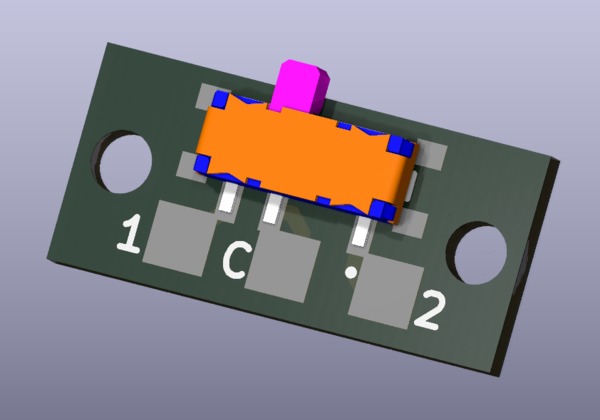

Ultra Micro Switch on PCB |

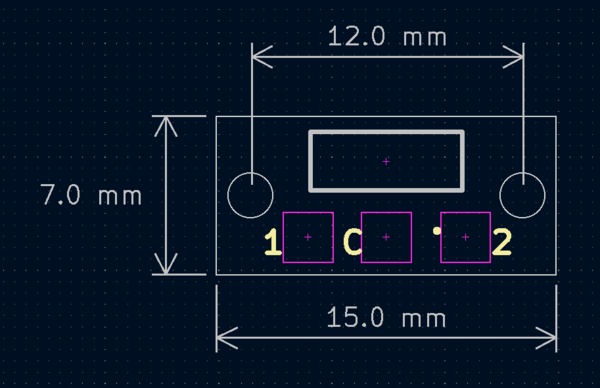

PCB Dimensions |
Price from £1.45
|
|
|
|

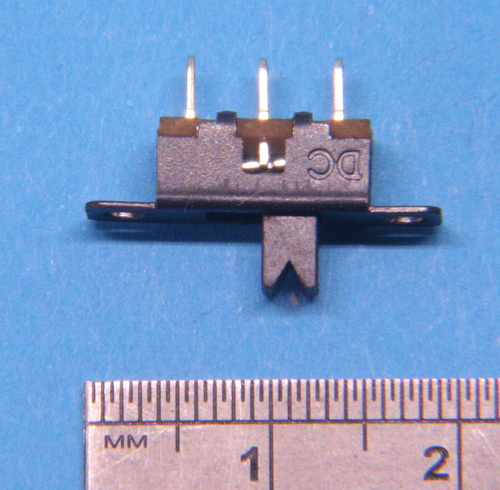

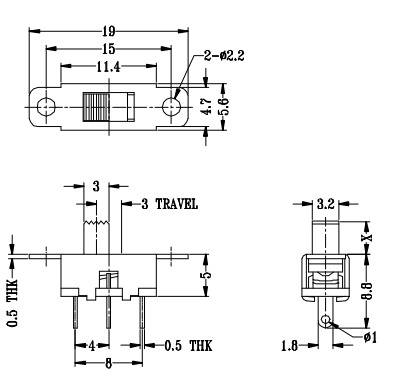

Miniature Slide Switch
A miniature slide switch with silver plated brass SPDT contacts rated at 500mA, solder pin terminals, 19mm long, 5.6mm wide, 5mm high, M2 mounting holes on 15mm centres.
Available as a bare switch or with 100mm leads.
- Select type:
| Miniature Slide Switch | £0.50 | Miniature Slide Switch with 100mm leads | £2.50 | Miniature Slide Switch with 100mm leads and JR style connectors | £4.90 |
|
|
|
|

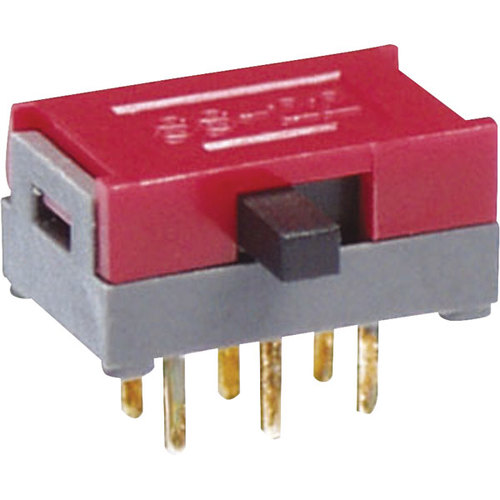

Micro Slide Switch DPDT
A tiny slide switch with DPDT contacts. The body measures just 10.2 x 6.5 x 4.5mm with solder pins on a 2.54mm pitch. Contacts are rated 0.4A max.
£ 2.50
|
|
|

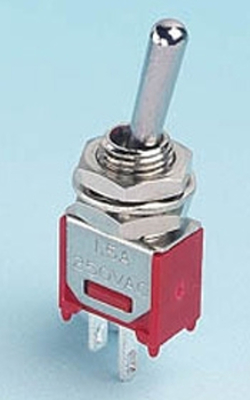

Micro SPDT Toggle Switch
- Description:
-
A tiny SPDT 2-way toggle switch. The body measures 8.64mm x 8.13mm x 5.95mm. Max switch current is 3A at 28V DC. Useful in model rail installations for on/off(charge) switching.
Available as a bare switch with solder tags, with 100mm leads or with leads and JR/Hitec connectors for battery, receiver and charge.

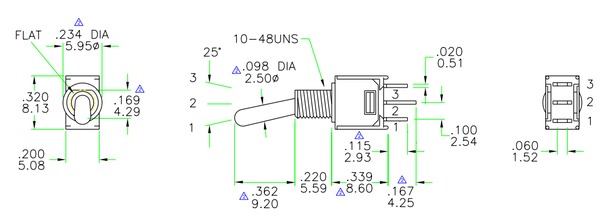

- Drawing:
-
toggle switch only |
- Select type:
| toggle switch only | £1.35 | 100mm bare end leads | £3.85 | 100mm leads and JR/Hitec connectors for battery, receiver and charge | £4.95 | 100mm leads and JR/Hitec connectors for battery, receiver and DC 5.5/2.1 for charge | £5.50 |
|
|
|

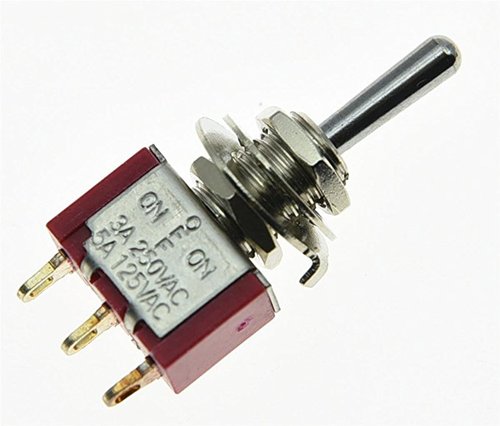

Mini SPDT 3-Way Toggle Switch
- Description:
-
A small single pole 3-way toggle switch, available in centre-biased and non-biased (latching) versions. The body measures 8.89mm x 12.70mm x 6.86mm. Max switch current is 5A at 28V DC.

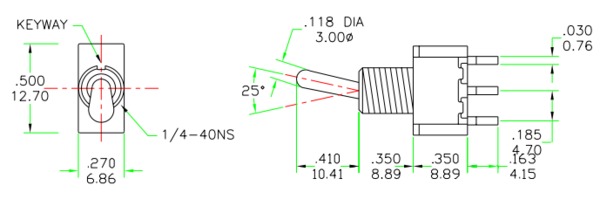

- Drawing:
-
Centre-Biased |
- Select type:
| Centre-Biased | £1.45 | Latching (Non-Biased) | £1.45 |
|
